PRODUCTS : Brazing Materials
AI-AI Brazing Materials
| Type | Composition | Melting Range | Specification | ||
|---|---|---|---|---|---|
| Alloy | Flux System | Flux content | (°C) | ||
| XR-FC0315 | AI-12Si | K-Cs-AI-F | 20-25% | 577-585 | ⦶ 1.6, ⦶ 2.0 |
| XR-FC0315C | AI-12Si | Cs-K-AI-F | 25-30% | 577-585 | Ring |
U Bend & Corollary Rings
Offer all kinds of aluminum U bend and corollary rings.
Applied in air-condition, refrigeration and icebox industry.
Cu-AI Brazing Materials

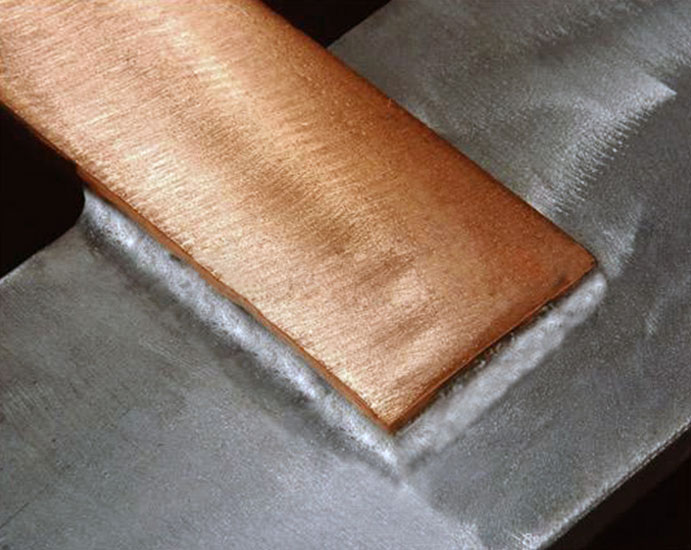

Flux-cored wire XR-FC0215 brings a new technology for Cu-AI brazing in refrigeration, air-condition and electrical apparatus industry. This type of material is very suitable for brazing copper plate(wire) to aluminum plate(wire).

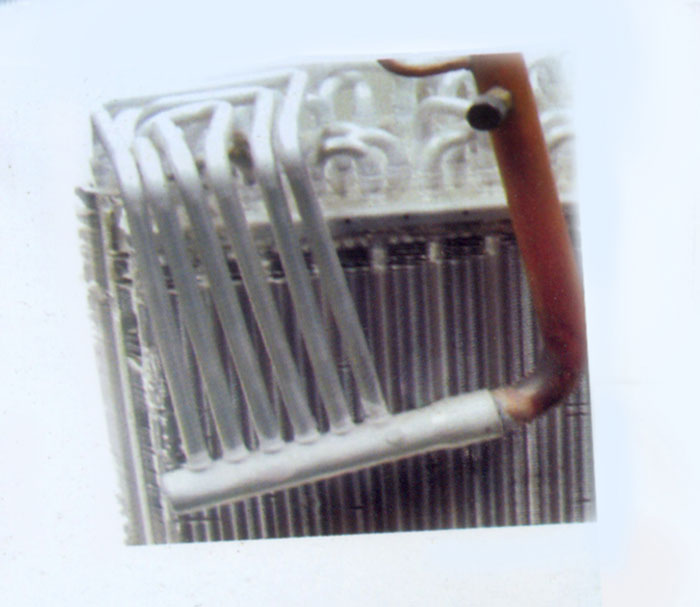

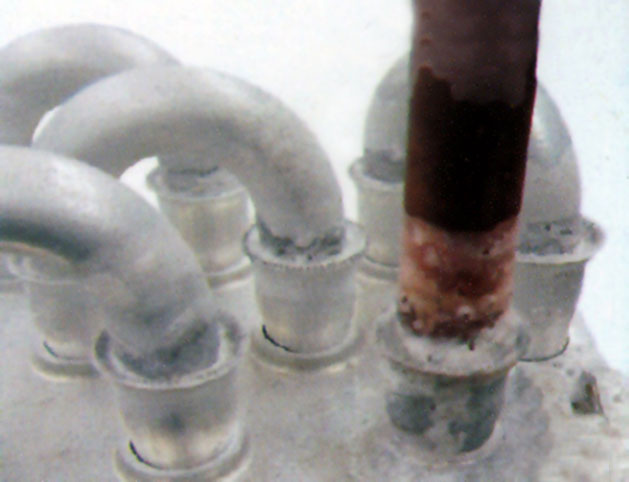

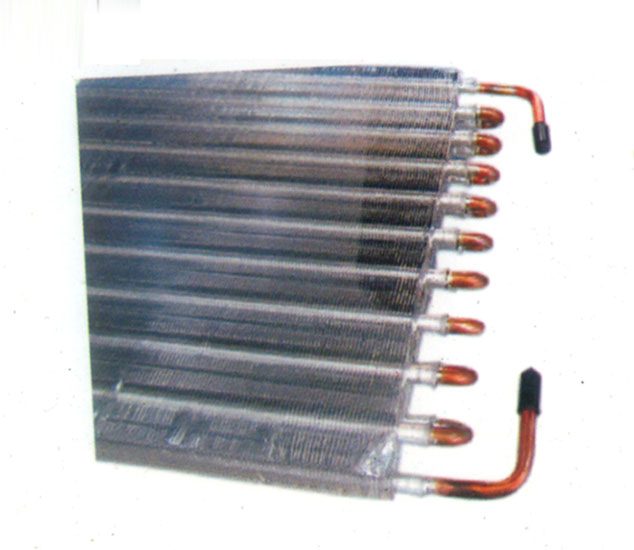

Flux-cored wire XR-FC22S filled with the non-corrosive cesium based flux, applied for copper tube to aluminum tube in refrigeration & air-condition industry.
| Brazing Alloy | Type | Composition | Melting Range | |
|---|---|---|---|---|
| Alloy | Flux | (°C) | ||
| Cu-AI Flux-cored Brazing Wire | XR-FC0215, XR-FC22S | Zn, AI, Oth. | KCsAIF 15%∼20% | 420∼480 |
| Cu-Al Solid Brazing Wire | XR-BW200 | Zn, AI, Oth. | - | 380∼420 |
| Cu-Al Brazing Flux | AI-12Si | Cs-K-AI-F | 25-30% | 450∼480 |
Suitable base metal :Copper, Brass, Aluminum alloy : 1 X X X ; 2 X X X ; 3 X X X ; 6 X X X.
Brazing Tool : Torch
Gas : LPG+Oxygen, Acetylene+Oxygent, Propate+Oxygen
